10-30T/H Full Automatic Tile Adhesive Making Machine With Twin Shaft Paddle Mixer
1. Description Of MG Automatic Tile Adhesive Making Machine
The main components of this tile adhesive making machine :Raw material storing system,automatic weighing system,conveying system,mixing system,pneumatic system,packing system and dedusting system,the main control system administrate the production order based on fixed formula ratio,thus the production line dosing the coarse materials from storage silos,after automatic weighing,the material will enter in premix tank and high efficient agravic mixer continuously,to mix in a short period (3-5min). The well mixed material will discharge into the holding tank,which will make secondary mixing,then down to new designed automatic filling and packing machine,the packing machine work efficiently based on fixed time and volume,it increase the capacity sharply,well packed finished mortar will be transferred to finished mortar area,ready for sale.
2. Parameter of MG Full Automatic Tile Adhesive Making Machine:
| Model | 2000L mixing plant | 3000/4000L mixing plant | 6000L mixing plant | 10000L mixing plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Bag belt conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet wrapping machine | Provide | Provide | Provide | Provide |
| Sand dryer | Provide as requirement | Provide as requirement | Provide as requirement | Provide as requirement |
| HS code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |

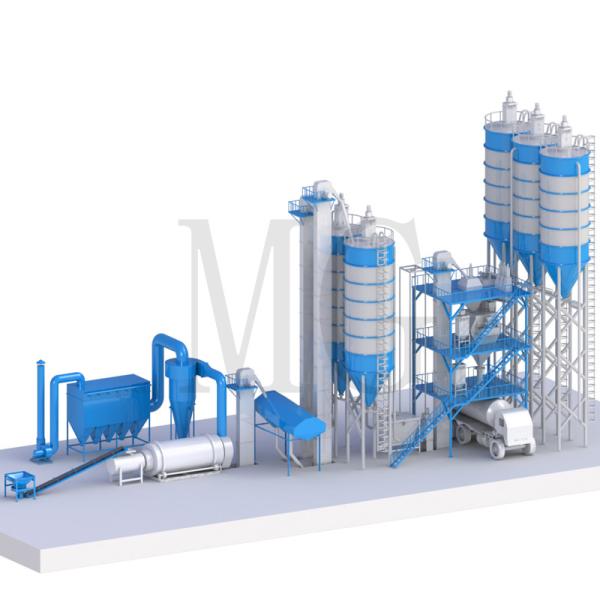

3. The 3D drawing of MG Tile Adhesive Making machine:
4. Configuration of MG Automatic Tile Adhesive Making Machine:
1.Raw Materials Storage System: Silo for storing needed raw materials
2.Lifting & Conveying System: Bucket Elevator, Screw Conveyor
3.Weighing System: depending on different formulas, weighing in proportion accurately
4.Mixing System: Dual-shaft paddle mixer,with 60~180s blending, materials are mixed evenly
5.Packing System: end products are packed by 20/25/50/kg bags, or stored in silos, or delivered by bulk tank truck directly
6.Dust Collection System: collect dust from drying system, weighing system, mixing system, packing system, protect the working and living environment.
7.Control System: Semi-auto/Full-auto Control, convenient for operation and management.
5. Zhengzhou MG Customer working site of the Full automatic tile adhesive making machine:
6. Zhengzhou MG Successfull projects of full automatic tile adhesive makinig machine:
7. Machine manufacturing process of MG full automatic tile adhesive makinig machine:
8. Application of MG Automatic Tile Adhesive Making Machine:
MG automatic tile adhesive making machine can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, tile glue, anchorage mortar etc.
Decoration mortar: Decorative plaster, Thin set coating, inner and outer wall putty, Screed mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, AAC jointing mortar, dry sand mixture, repair mortar, mildewproof mortar, shielding mortar etc.
9. Our Company Certificates:
Zhengzhou MG has obtained Henan advanced enterprise certificate, Henan excellent technology enterprise certificate, Henan famous brand certificate, practical patent certificates of packing machine, weighing system, finish product hopper, dust collector, twin shaft mixer and bucket elevator, verification of compliance, certificate of registration ISO9001:2008, environmental management system certificate, quality management system certificate.
