What is dry mortar:
Dry mortar is also called premixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water ,in construction site. It has different properties through adding different additives. The demand for dry mortar has been increased rapidly due to its outstanding merit compared to the mortar production in job-site.
Application of MG Automatic Dry Mortar Mixing Equipment:
Dry Mortar Mixing Equipment can produce the following dry mortars:
| Bonding mortar | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc. |
Technical parameters of MG Automatic Dry Mortar Plant:
| Model | Out put | Occupied area | Equipment Height | Manpower | Batching and packaging |
| Simple dry mortar plant | 1-3t/h | 20m2 | 3-4m | 2-3 Person | Manual batching Automatic packaging |
| Improved dry mortar plant | 4-5t/h | 20m2 | 3-5m | 2-3 Person | Manual batching Automatic packaging |
| Semi- auto dry mortar plant | 6-8t/h | 50-60m2 | 6-8m | 3-4 Person | Manual batching Automatic packaging |
| Automatic dry mortar plant | 8-30t/h | 60-100m2 | 8-13m | 3-4 Person | Automatic batching Automatic packaging |
Detail configurations of MG Automatic Dry Mortar Plant:
1) Raw Material Storing System and bucket elevator conveyor system:
Store raw materials such as cement, fly ash, thickened powder, quartz powder or yellow sand. MG raw material warehouse cone parts pneumatic break arch device, can effectively prevent cement, fly ash knot arch. Ensure smooth measurement of spiral ingredients.

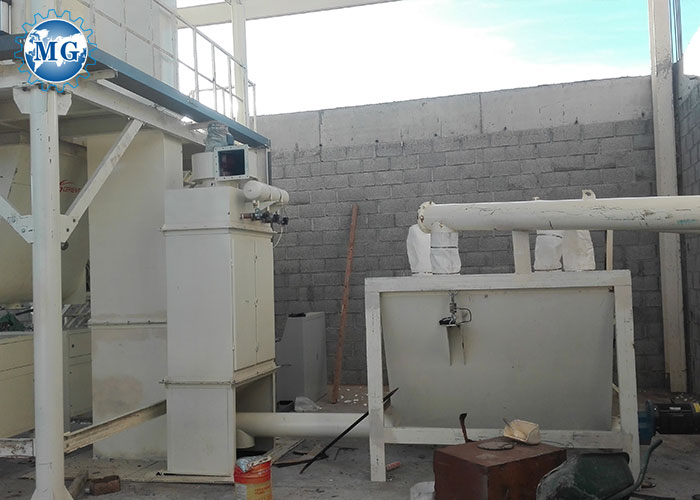

2) Automatic Weighing System and Dust collector:
Accurate weighing according to recipe requirements, small error, self-measurement error and repair, high precision.
Bag pulse dust removal and centrifugal cyclone dust removal, dust removal effect is good, fan, cloth cylinder and filter combination as a whole, can shorten the wind network, simplify the process, reduce equipment investment.
3) Twin Shaft Agravic Mixer : High mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer.
4) Finished product hopper: to store the finished material and prepare for the packing work, the ribbon mixer is to protect the finished material from segregation during the second falling.
5) Packaging Machine: The use of computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production.
6) Automatic PLC Control System
PLC control system with characters of High degree of intelligence, automatic control from the weighing of ingredients to the mixing, packaging and full control, easy to operate.
Loading and Delivery of MG Automatic Dry Mortar Plant
Zhengzhou MG Industrial Co.,Ltd is a professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry!
